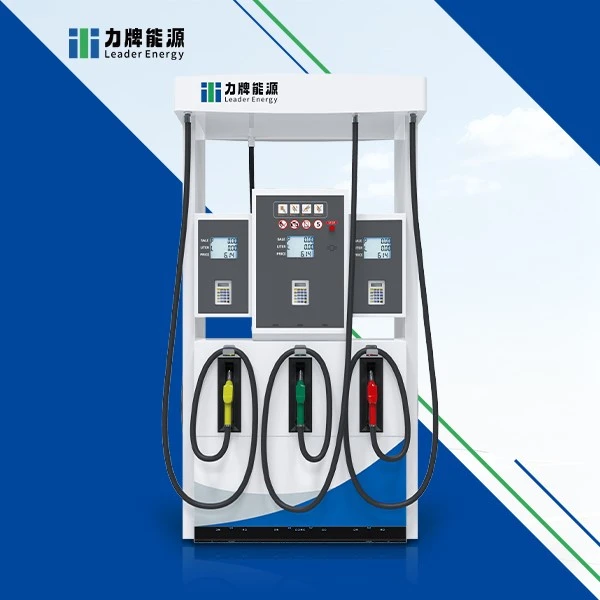

Electric Fuel Dispenser Pump

Electric Fuel Dispenser Pump is a 56X Series fuel dispenser available with 1–8 hoses, Tatsuno-type pump and meter units as standard, optional Tokheim or Bennett types, and configurable cabinet appearance for new station, expansion and replacement projects.

Pumping & Metering Assembly
The dispenser integrates a pump unit and fuel meter for fuel transfer and quantity measurement. The assembly is configured according to the specified dispenser model and fueling requirements.

Dispensing & Electronic Assembly
Fuel hoses and nozzles form the dispensing assembly, while the electronic control unit manages dispenser operation and processes fueling-related signals.

Steel Cabinet & Service Access
The cabinet is manufactured from 3 mm cold-rolled steel plate and uses an arc-shaped upper section, top fuel outlet and split-door structure. The cabinet arrangement provides access to internal pump, metering and electronic components for inspection, maintenance and replacement.

Actual metering performance should be confirmed according to the applicable configuration and project requirements.

Hose Configuration
The 56X Series is available in 1-, 2-, 4-, 6- and 8-hose configurations. Hose quantity can be selected according to the required dispensing positions, fuel products and station layout.

Pump & Meter Assembly Options
The standard configuration uses a Tatsuno-type pump and meter assembly. Tokheim-type, Bennett-type or other specified pump and meter assemblies can be considered according to project requirements and equipment compatibility.

Cabinet Customization
Logo, cabinet color and external cabinet shape can be customized according to project requirements. Custom appearance specifications should be confirmed before production.

Electronic Control System: Manages dispensing operation, metering data processing and equipment control.

IoT Integration: Optional IoT functions are available for connecting the dispenser with a station management system or other external management platform.

Fueling Data & Equipment Status: Depending on the selected system configuration, fueling-related data and equipment status can be transmitted to the connected management platform.

Communication & Integration: The available communication interface, communication protocol and system integration method should be confirmed according to the selected IoT configuration and project requirements before order placement.

Metering & Dispensing Inspection
The metering system is checked against the specified accuracy requirement. Pump units, meters, hoses and nozzles are inspected for correct dispensing operation and assembly condition.

Electronic & Cabinet Inspection
Electronic control functions and specified communication functions are tested before shipment. Cabinet dimensions, door structure, component installation and customized appearance are checked against the order requirements.

Certification
CE, EAC, OIML-related and ISO documentation can be provided according to the applicable model, certification scope and destination-market requirements.

Before installation, the following site and equipment information should be confirmed:

Fuel inlet connection

Fuel piping arrangement

Electrical power supply

Grounding arrangement

Installation foundation and mounting position

Communication cable, if applicable

Station management system interface, if applicable

Applicable hazardous-area requirements

For replacement or expansion projects, the existing dispenser model, dimensions, hose arrangement, pump and meter type, piping connections and electrical requirements should be provided for configuration matching.

Replacement parts can be supplied according to the installed dispenser configuration. Common service parts include:

Pump units

Flow meters

Fuel hoses

Nozzles

Mainboards

Power boards

Solenoid valves

Because component specifications may vary between dispenser configurations, the equipment model, part number or existing component information should be provided when requesting replacement parts.

Warranty

Mainboards, power boards and other covered electronic components are subject to the applicable warranty terms. Rubber hoses, nozzles and other consumable components are excluded according to the stated warranty scope.
